YT24 Drilling Tool
Drilling Tool configuration based on the YT24 reference. Confirm operating conditions before final selection.
- Model: YT24
- Air consumption (L/S): ≤66.7
- Impact frequency (Hz): ≥31
- Water pipe inner diameter (mm): 13
Product Category
Drilling Tools & Consumables
Authorized product entries for drilling tooling and replacement requirements.
Drilling Tools & Consumables Catalog
Review the published model references and available technical data. Confirm site conditions and final configuration with our team before ordering.
Page 1 of 2

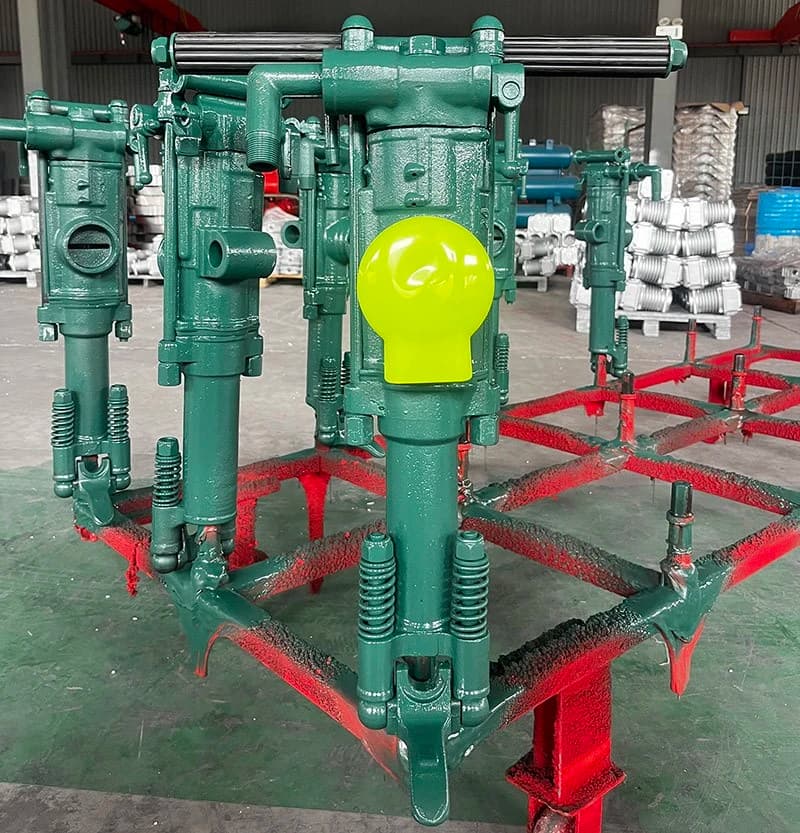

Y24 Drilling Tool
Drilling Tool configuration based on the Y24 reference. Confirm operating conditions before final selection.
- Model number: Y24
- Air consumption: 1.7m³/min
- Working Pressure: 0.4-0.63mpa
- Dimension (LWH): 604485158mm

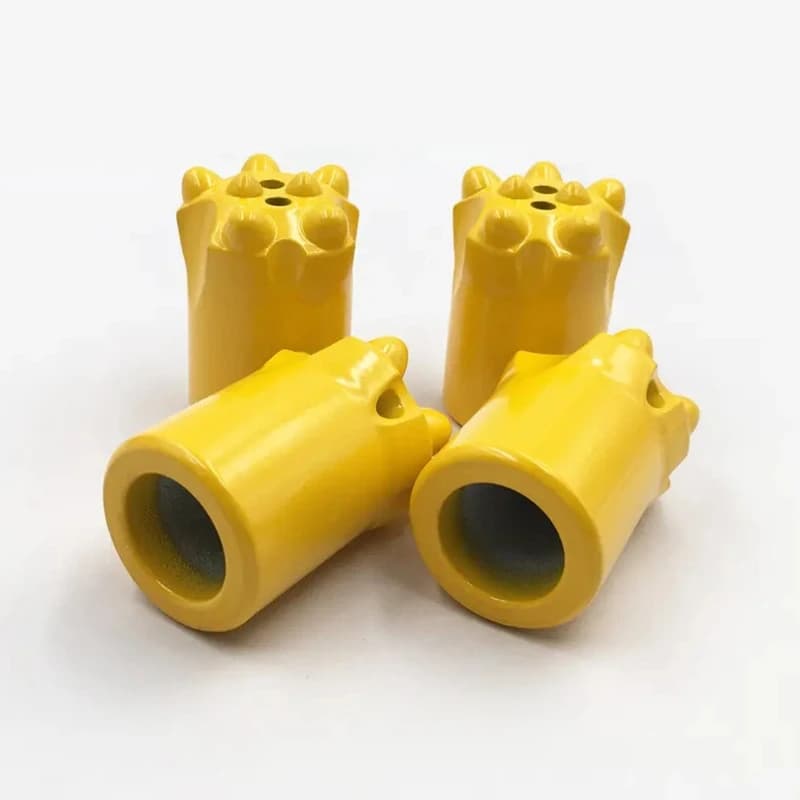

Button Bit Drilling Tool
Drilling Tool configuration based on the Series-160 reference. Confirm operating conditions before final selection.
- Buttons: 11° Tapered tapered button drill bit
- Bit diameter: Buttons (mm) Angle Flushing hole Weight Drill T part No.
- mm: inch Front No. Guage No. Front Guage kg
- 4 buttons Short skirt: 32 1 1/4" 27 38 35° 1 2 0.24 B-H22-11-32-2738

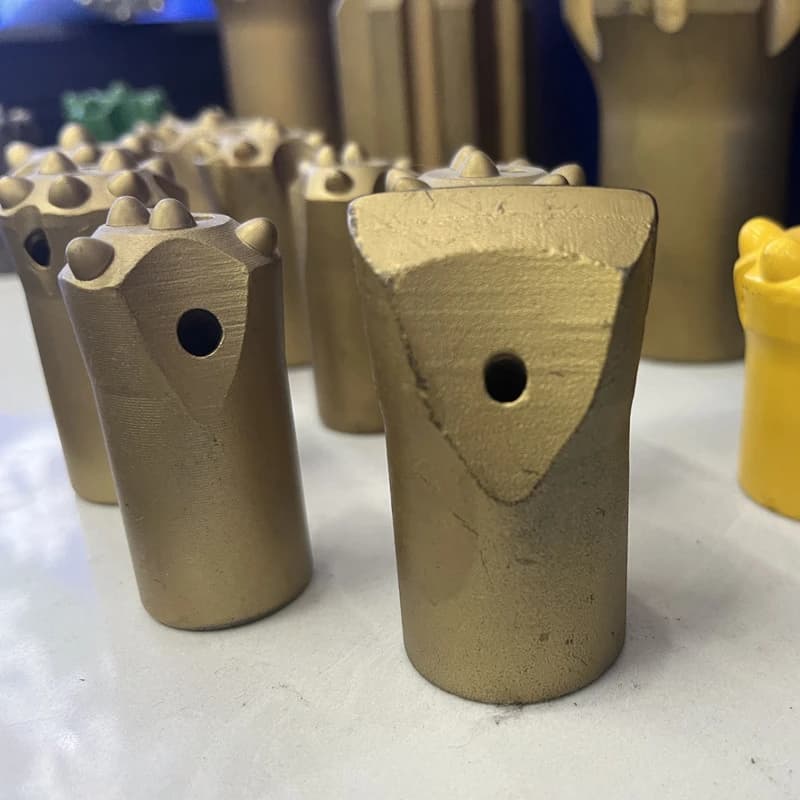

Drill Bit Drilling Tool
Drilling Tool configuration based on the Series-161 reference. Confirm operating conditions before final selection.
- Bit diameter: Dimension of carbide (mm) Flushing hole Weight Drill T part No.
- mm: inch Height Width Class Front Guage kg
- 32: 1 1/4" 13.5 8 3A - 2 0.22 HB-7/32-H13.5-W8-3A
- 34: 1 11/32" 13.5 8 3A - 2 0.26 HB-7/34-H13.5-W8-3A

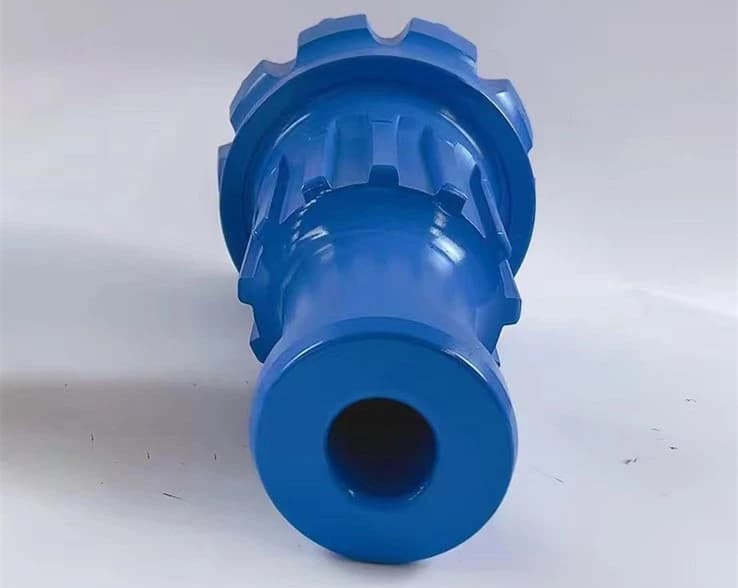

Drill Bit Drilling Tool
Drilling Tool configuration based on the Series-162 reference. Confirm operating conditions before final selection.
- Item NO.: DHD350-152 Mission50-152 SD5-152 QL50-152
- Shank Length (mm): 260 260 259 240
- Spline: 8 12 8 12
- Port Holes: 2 2 2 2

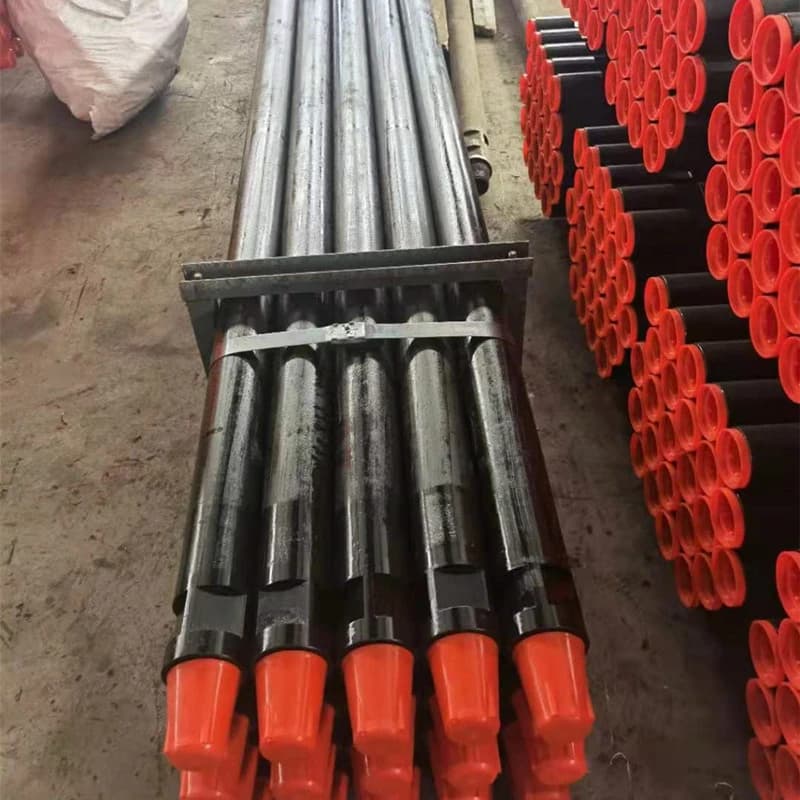

ZD-89 Drilling Tool
Drilling Tool configuration based on the ZD-89 reference. Confirm operating conditions before final selection.
- Drill pipe Diameter (mm): Drill pipe length (mm) Thread type Wall thickness
- 76 (3"): 1000-6000 API 2 3/8" REG 5mm-8mm
- 89 (3.5"): 1000-6000 API 2 3/8" REG 5.5mm-8mm
- 102 (4"): 1000-6000 API 2 3/8" REG 8mm, 9.19mm

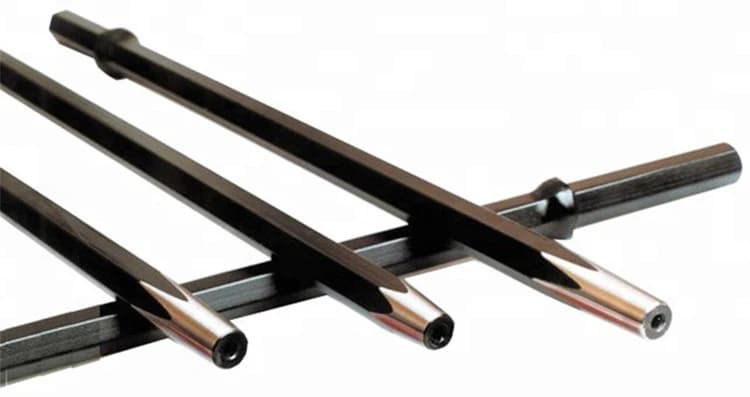

Drill Pipe Drilling Tool
Drilling Tool configuration based on the Series-164 reference. Confirm operating conditions before final selection.
- Length (mm): 610-3660 610-3660 610-3660
- Degree: 11 12 7
- Weight (kg): 2.19-11.49 2.19-11.49 2.8-13.1

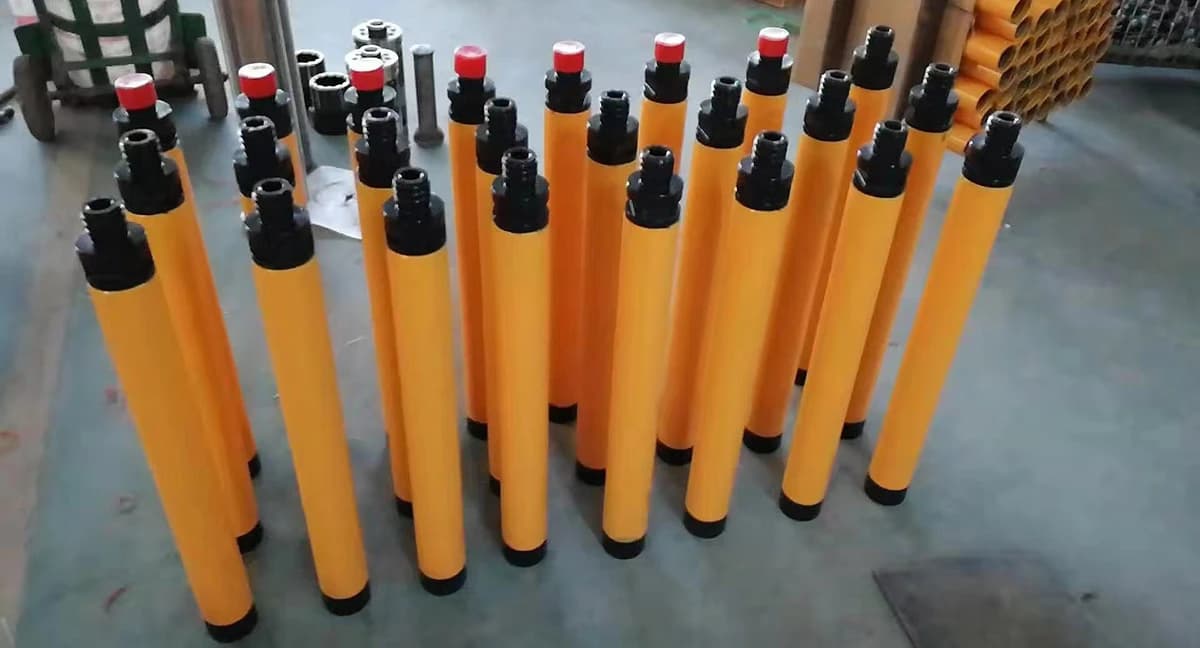

DTH Hammer Drilling Tool
Drilling Tool configuration based on the Series-165 reference. Confirm operating conditions before final selection.
- Item NO.: CIR60 CIR76 CIR90 CIR110 CIR130 CIR150
- Hammer Length without bit (mm): 777 777 796 840 882 904
- Top sub thread: F32x108 PIN F48x108 PIN F48x108 PIN API 23/8" REG BOX API 23/8" REG BOX F70x10 BOX
- Outside diameter (mm): 53 66 80 98 112 136

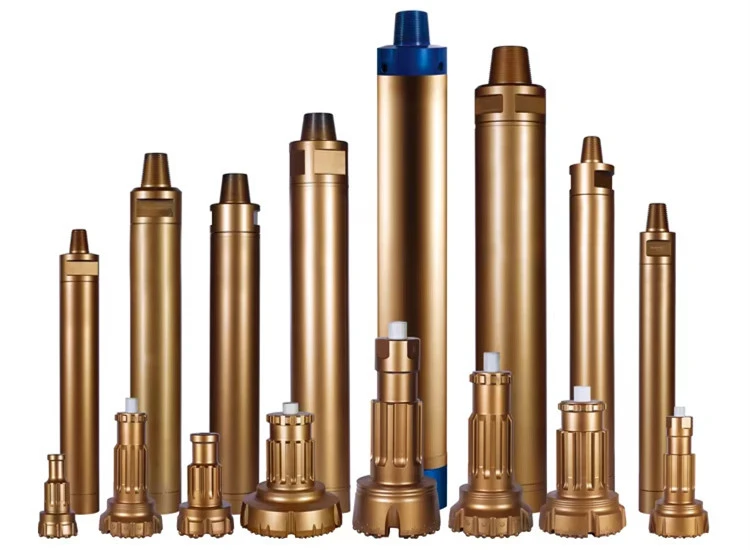

QL60 DTH Hammer Drilling Tool
Drilling Tool configuration based on the QL60 reference. Confirm operating conditions before final selection.
- Model reference: QL60
- Configuration: Confirm with your application requirements

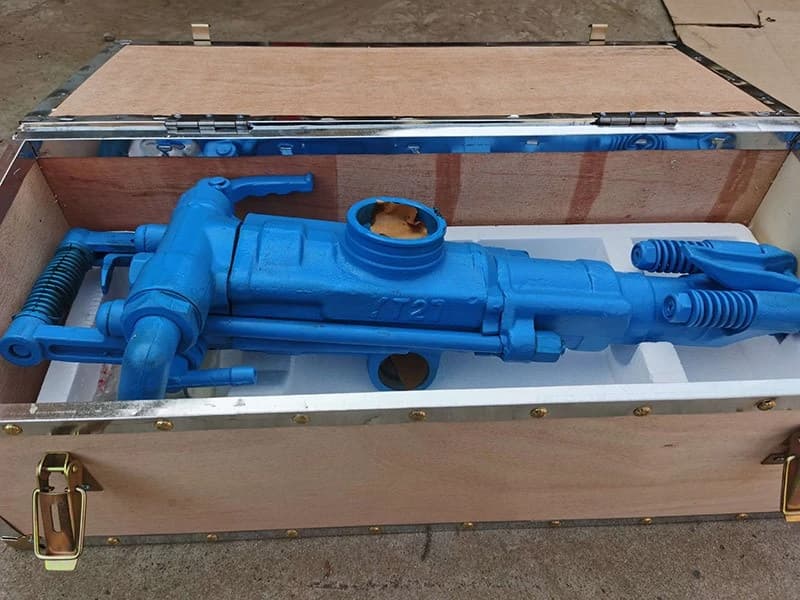

YT27 Drilling Tool
Drilling Tool configuration based on the YT27 reference. Confirm operating conditions before final selection.
- Type: YT27
- Weight: 27kg
- External Dimensions (LWH): 668248202 (mm)
- Cylinder Diameter: φ80 (mm)
YT29A Drilling Tool
Drilling Tool configuration based on the YT29A reference. Confirm operating conditions before final selection.
- Model: YT29A
- Weight: 26.5kg
- Length: 659mm
- Air pressure: 0.4-0.63Mpa

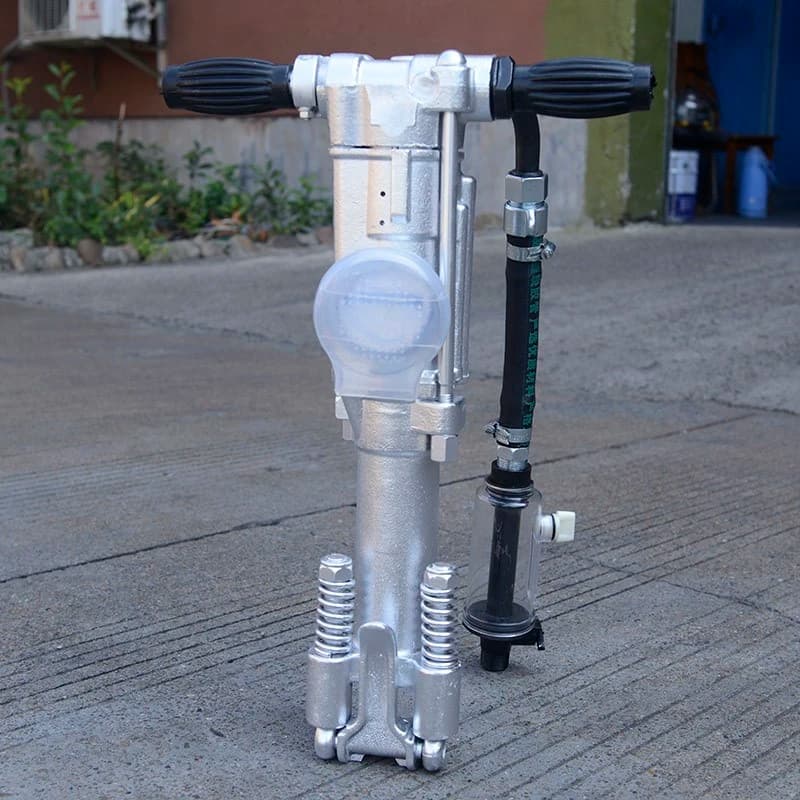

YO20 Drilling Tool
Drilling Tool configuration based on the YO20 reference. Confirm operating conditions before final selection.
- Model reference: YO20
- Configuration: Confirm with your application requirements
How to Choose
Confirm your material, operating environment, power availability, output requirement and safety constraints with an engineer before selecting a model.
